The Biofidelic Dummy (ATD)

The new human-like generation of crashtest dummies

If the aim is to recreate movement sequences, damage and injuries as accurately as possible, the biofidelic dummy should be used in future. These biofidelic dummies are constantly being further developed in collaboration with the HTW Dresden under the supervision of Prof. Dr. Lars Hannawald and Dr. Michael Weyde and are manufactured using state-of-the-art technology in a specially designed dummy factory at CTS.

The special properties of the Biofidel dummy, in particular its comparability with real people, result from the special construction method. The physical properties of all the materials used correspond as closely as possible to the "components of a real person". Bone density and bone structure, for example, are modeled on the human skeleton in great detail. Due to the body density based on the human body, collision-related damage to vehicles, for example, can be simulated much more realistically than was previously possible with dummies made of steel and plastic. Furthermore, doctors can now relate the real injuries of the person involved in the accident directly to the damage caused by the biofidelic dummy used.

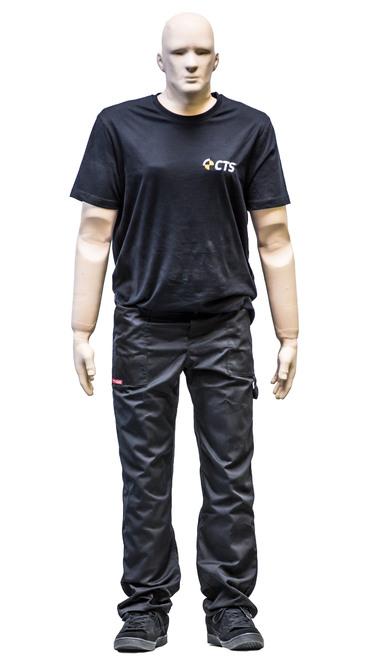

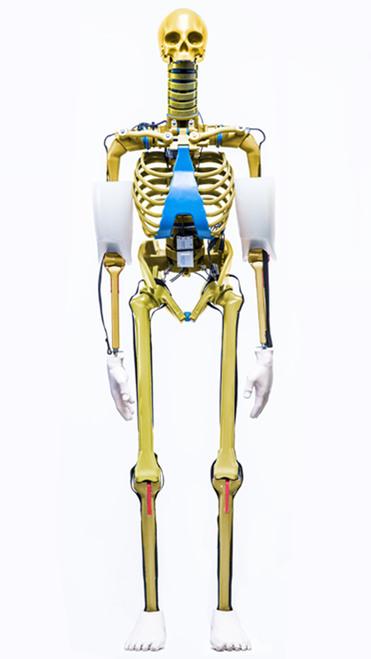

PRIMUS breakable

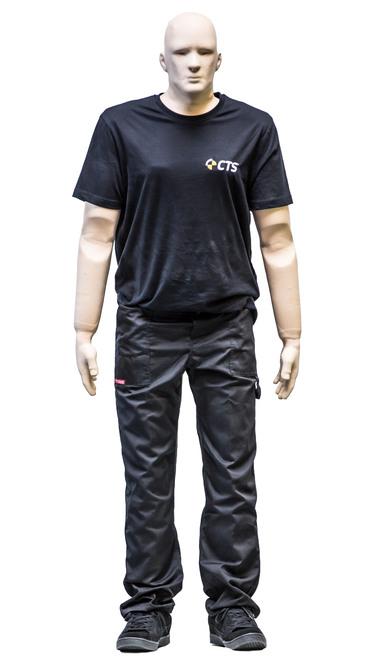

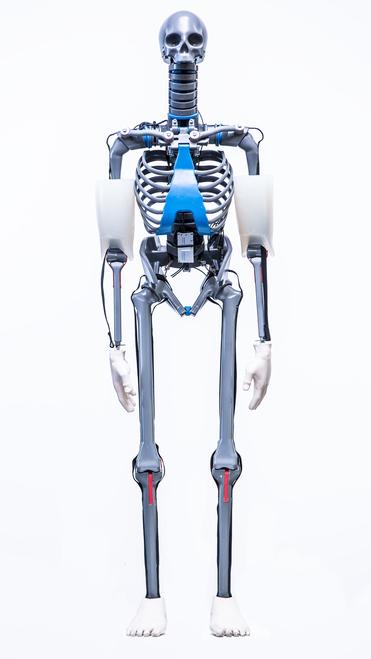

PRIMUS unbreakable*

Category:

Dummy for the reproducibility of human injuries (X-ray capable)

Category:

Dummy for the reproducibility of human mass vibrations

Properties:

Bone material modeled on the breaking strength of human bones
Tendons and cruciate ligaments in knee and arm joints oriented towards human strength

* Properties:

Bone material differs from human bone 3 times higher breaking strength
Tendons and cruciate ligaments in knee and arm joints strengthened by 3 times compared to human strength

Soft tissue material modeled on the hardness of human tissue
Degrees of freedom modeled on human movement possibilities
Sitting, standing and twisted postures can be achieved
Hands with “grip function” made of solid material or with integrated bone replacement material are available
Size and weight can be individually adjusted
Equipped with (individual) measurement technology possible
Water resistant / suitable for use underwater
Male and female models available

Soft tissue material modeled on the hardness of human tissue
Degrees of freedom modeled on human movement possibilities
Sitting, standing and twisted postures can be achieved
Hands with “grip function” made of solid material or with integrated bone replacement material are available
Size and weight can be individually adjusted
Equipped with (individual) measurement technology possible
Water resistant / suitable for use underwater
Male and female models available

Purchase price:

PRIMUS breakable, male, 50th

from 25.900,00 € (net) plus measurement technology

PRIMUS breakable, female, 50th (based on PRIMUS 50th)

from 25.900,00 € (net) plus measurement technology

PRIMUS breakable, 95th (based on PRIMUS 50th)

from 28.350,00 € (net) plus measurement technology

PRIMUS breakable, male, 5th (based on PRIMUS 50th)

from 23.200,00 € (net) plus measurement technology

PRIMUS breakable, female, 5th (based on PRIMUS 50th)

from 23.200,00 € (net) plus measurement technology

Rental price:

PRIMUS breakable, male, 50th

from 1.900,00 € (5 business days) plus possible repairs / plus measurement technology

Purchase price (refurbished):

PRIMUS breakable, male, 50th (used parts may be damaged)

from 9.750,00 € (net) plus measurement technology

Purchase price:

PRIMUS unbreakable, male, 50th

from 34.450,00 € (net) plus measurement technology

PRIMUS unbreakable, female, 50th (based on PRIMUS 50th)

from 34.450,00 € (net) plus measurement technology

PRIMUS unbreakable, 95th (based on PRIMUS 50th)

from 37.900,00 € (net) plus measurement technology

PRIMUS unbreakable, male 5th (based on PRIMUS 50th)

from 32.750,00 € (net) plus measurement technology

PRIMUS unbreakable, female 5th (based on PRIMUS 50th)

from 32.750,00 € (net) plus measurement technology

Rental price:

PRIMUS unbreakable, male, 50th

from 3.900,00 € (5 business days) plus possible repairs / plus measurement technology

Purchase price (refurbished):

PRIMUS unbreakable, male, 50th (used parts may be damaged)

from 23.900,00 € (net) plus measurement technology

Hier erscheint die Überschrift – sie kann aus mehreren Zeilen bestehen.

Die zweite Überschrift ist etwas abgesetzt und kann, wenn gewünscht, auch aus mehreren Zeilen bestehen.

Hier kannst du einen Fließtext nach Wunsch eintragen – er kann beliebig lang sein und bietet damit genügend Raum für deine Ideen. Mit unserem NETZCOCKTAIL-Editor kannst du deinen Text problemlos fett und kursiv anzeigen lassen oder auch unterstreichen.

Kombinationen aus diesen Ansichten sind genauso möglich, wie das Verlinken von Internetseiten oder deiner E-Mail-Adresse. Lasse dich von der einfachen Bedienung überraschen und klicke in der Leiste unter diesem Text auf das Stift-Icon zur Bearbeitung.

Fields of application:

Crash tests for road traffic accident reconstruction
Development tests for the automotive industry
Tests for autonomous driving and with non-standard seating positions
Development tests and safety tests for the aviation industry
Life cycle and vibration tests
Airbag tests (also for such as motorcycle clothing, equestrian sports, cycling)
Explosive or mine tests
Shooting tests (safety vests, helmets)
Review of self-mutilation scenarios
Accidents with mechanical technical equipment
Crime scene reenactment (murder / suicide)
Rescue and recovery

Data sheet PRIMUS breakable

Data sheet PRIMUS unbreakable

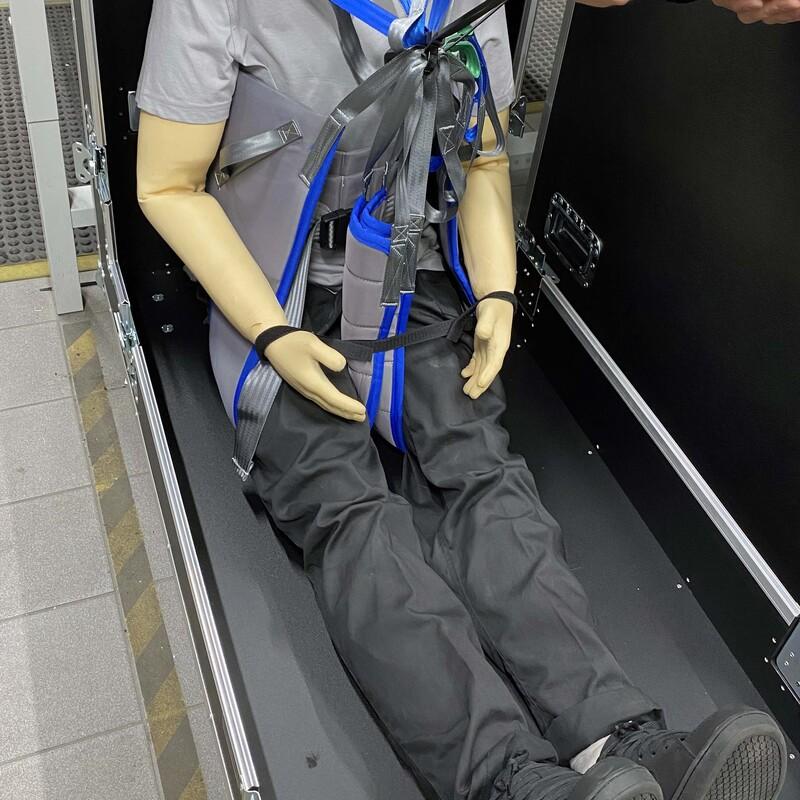

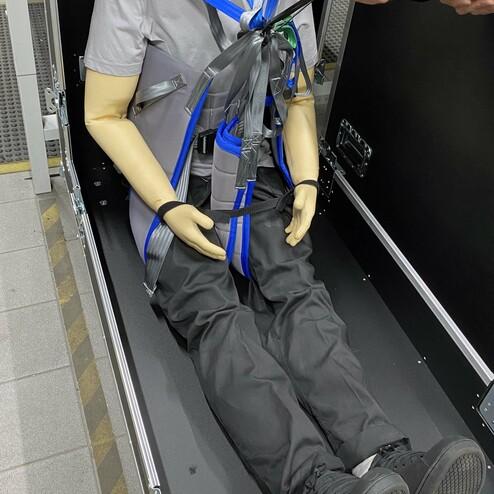

Shipping and transport

Safely around the world

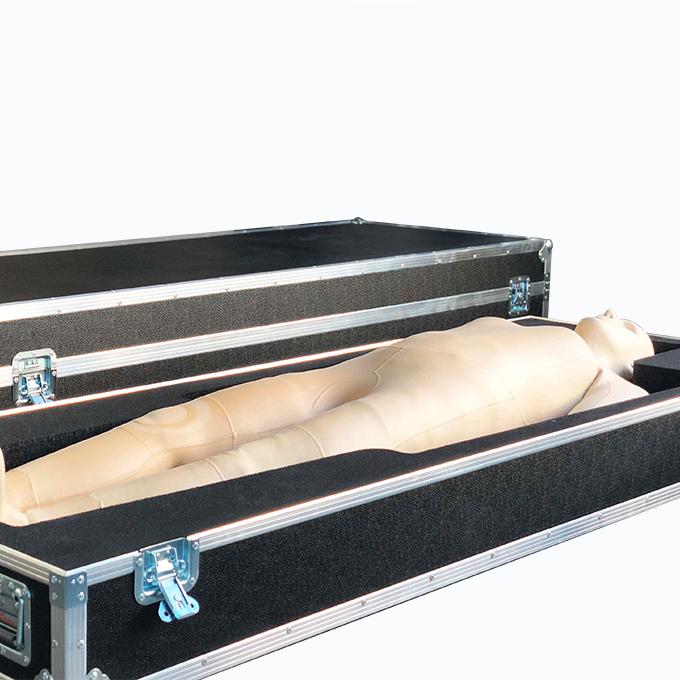

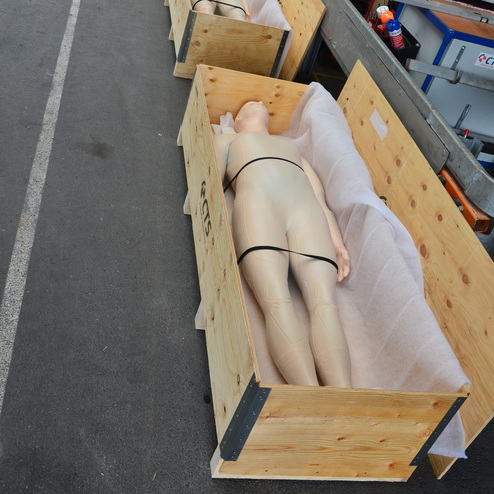

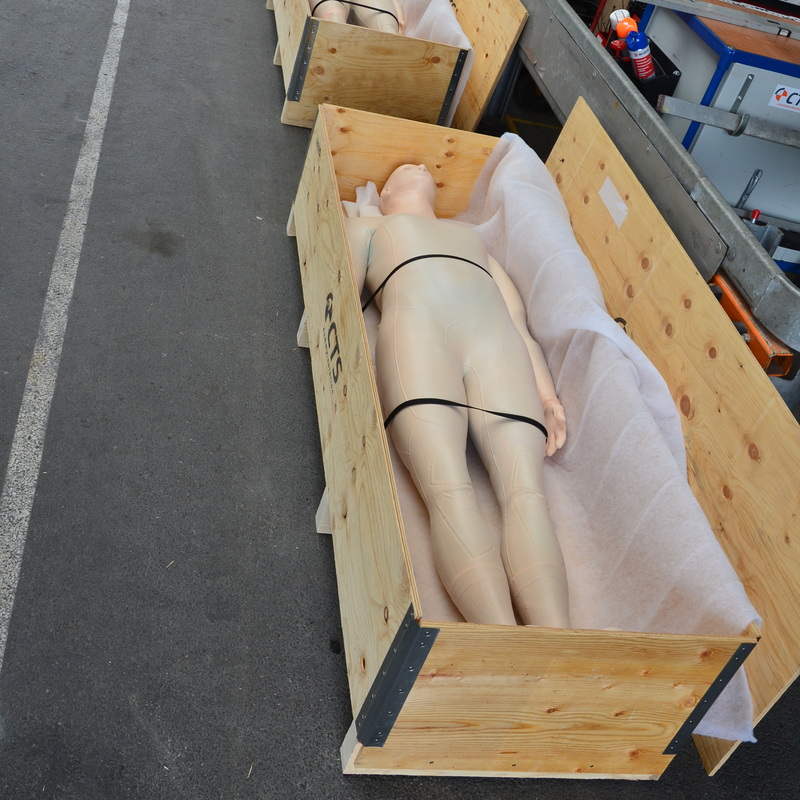

The packaging solutions customized in the dummy laboratory ensure smooth transport from Münster to destinations all over the world. With our specially secured transport boxes, we can ensure that dummies and dummy components reach their destination undamaged.

In addition, the transport boxes are ideally suited for later storage of the dummies at the end customer. A special added value that you can benefit from when buying a dummy.
