Standard crash tests
Tests according to standardized impact tests
As an accredited test laboratory we carry out crash tests in accordance with standards. These include:
- Testing of road restraint systems
DIN EN 1317-1 (2011-01) - Road restraint systems – Part 1: Terminology and general criteria for test methods
DIN EN 1317-2 (2011-01) - Road restraint systems – Part 2: Performance classes, impact test acceptance criteria and test methods for safety barriers including vehicle parapets
DIN EN 1317-3 (2011-01) - Road restraint systems – Part 3: Performance classes, impact test acceptance criteria and test methods for crash cushions
DIN CEN/TS 1317-7 (2024-04) - Road restraint systems - Part 7: Performance characterisation and test methods for terminals of safety barriers
DIN CEN/TS 1317-9 (2024-04) - Road restraint systems - Part 9: Impact tests and test methods for removable barrier sections
DIN CEN/TS 1317-10:2023 - Road restraint systems - Part 10: Assessment methods and design guidelines for transitions, terminal and crasg cushion connections - transitions
DIN CEN/TS 16786 (2018-06) - Restraint systems on roads - Transport vehicle-supported mobile impact retarders (TMA) - Performance classes, acceptance criteria for impact tests and test performance
MASH (2016) - Manual for Assessing Safety Hardware Second Edition only: Longitudinal Barriers, Terminals and Crash Cushions, Truck- and Trailer-Mounted Attenuators and Variable Message Sign and Arrow Board Trailers
- Testing of support structures for road equipment
DIN EN 12767 (2019-10) - Passive safety of support structures for road equipment – Requirements, classification and test methods
MASH (2016) - Manual for Assessing Safety Hardware Second Editiononly: Support Structures, Work-Zone Traffic Control Devices, Breakaway Utility Poles, and Longitudinal Channelizers
- Testing of vehicle security barrier systems
ASTM F2656/F2656M - 23 (2023) - Standard Test Method for Crash Testing of Vehicle Security Barriers
DIN SPEC 91414-1 (2021-04) - Mobile Fahrzeugsicherheitsbarrieren für Sicherheitsanforderungen - Teil 1: Anforderungen, Prüfmethoden und Leistungskriterien
ISO 22343-1 “Security and resilience - Vehicle security barriers - Part 1: Performance requirement, vehicle impact test method and performance rating”
Technical Guideline (TR) (2019-06) – Mobile Vehicle Security Barriers (version 0.8)
Note: ISO 22343-1 has replaced IWA 14-1 since 2023 and PAS 68 was also withdrawn in 2023.
- Testing of safety equipment for construction sites
Technische Lieferbedingungen für Leit- und Warnbaken (1997) - Kapitel 4.1 Prüfung der Folien ausgeschlossen
The requirements of a test laboratory correspond in accordance with Article 43 of the Construction Products Regulation for the EN 1317 test methods. In addition, our accreditation by the DAkkS is internationally valid, since the German accreditation body is a member of the International Laboratory Accreditation Cooperation (ILAC).
Flexible accreditation
Due to the flexible category III accreditation, we can use the free choice of standardized test methods or those that are equivalent to them within the test areas specified above and without requiring prior information and approval from the DAkkS (except EN 1317).
Possible test procedures:
CEN/TS 17342:2019 Road restraint systems - Motorcycle road restraint systems which reduce the impact severity of motorcyclist collisions with safety barriers
ASTM F 3016/F 3016M:2019 - Standard Test Method for Surrogate Testing of Vehicle Impact Protective Devices at Low Speeds
BASt - Sonderlösungen von Schutzeinrichtungen in Einmündungsbereichen (Version 03 vom 23.07.2021)
AS/NZS 3845.2:2017 - Road safety barrier systems and devices Part 2: Road safety devices
BSI PAS 170-1 - Impact testing for vehicle safety barriers - Low speed impact testing Part 1: Test method for bollards using ramming trucks
Withdrawn test procedures:
NCHRP Report 350 - National Cooperative Highway Research Program
MASH 2009 - Manual for Assessing Safety Hardware
Manual for the evaluation of safety devices
ASTM F 2656-07 – Test Methods for Impact Testing of Vehicle Safety Barriers (Formerly P1, P2, P3, P4 Rating)
ASTM F2556/F2656M – 15 - Test Methods for Impact Testing of vehicle safety barriers (formerly P1, P2, P3 rating)
ASTM F2656/F2656M – 18 - Test Methods for Impact Testing of Vehicle Safety Barriers (Formerly P1, P2, P3 Rating)
ASTM F2656/F2656M – 18a - Test Methods for Impact Testing of Vehicle Safety Barriers (Formerly P1, P2, P3 Rating)
ASTM F2656/F2656M – 20 - Test Methods for Impact Testing of Vehicle Safety Barriers (Formerly P1, P2, P3 Rating)
CEN CWA 16221:2010 – Vehicle security barriers. Performance requirements, test methods and guidance on application
DoS SD-STD-02.01 – … (Formerly K4, K8, K12 Rating)
IWA 14-1:2013 – Vehicle security barriers - Part 1: Performance requirement, vehicle impact test method and performance rating
PAS 68:2013 – Impact test specifications for vehicle security barrier systems
DIN V ENV 1317-4 (2002-04) - Road restraint systems –Part 4: Performance classes, impact test acceptance criteria and test methods for terminals and transitions of safety barriers
Fast and flexible

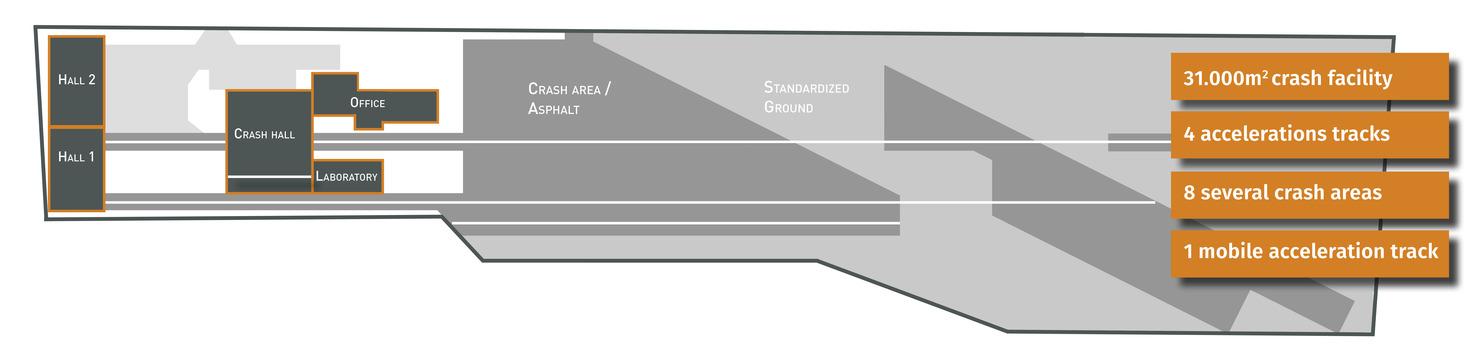

Our large, easily accessible crash test facility, which can be converted in a very short time, offers the highest spatial and technical flexibility. On the new asphalt surface, construction lengths of up to 170 m are now possible, both for transportable systems and for systems attached to asphalt or concrete foundations.
Successful crash tests of our customers
References from the standard range on the CTS YouTube channel
Clear processing of audit reports
- Extensive written and digital documentation of the results
- Multimedia presentation comprehensible for all target groups
- Direct further use for the corresponding certification and approval processes

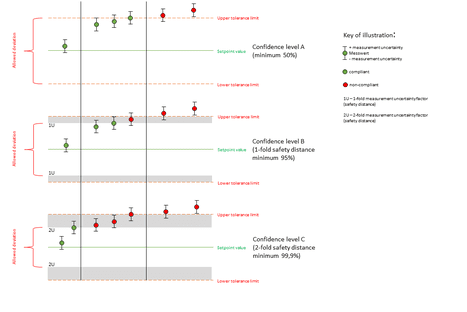

Compliance statement and rule of decision
With regard to compliance statements in test reports, the following decision rules have been defined:
As a rule, a low confidence level (A) is assumed, which increases the acceptance range, so that measurement results with a confidence level of at least 50% are also accepted.
After prior agreement, the customer can also specify a medium confidence level (B), which reduces the acceptance range so that measurement results with a confidence level of at least 95% are also accepted with a maximum residual risk of 5%.
A high confidence level (C), which corresponds to a confidence level of at least 99.9%, is not acceptable at the CTS test laboratory and is therefore not applicable.
The confidence level you set (A or B) will be communicated to you via the offer and the test report.
Customized constructive special solutions
- Push-pull tests
- Exchangeable bottoms
- Slopes
- Strip foundations
For your project
We are well equipped for your project
Construction machinery:
- Forklift
- Excavator
- cherry picker
- Vibratory feeder
Equipment / Service:
- Livestreams directly from the crash test facility
- Office container as workplace directly on the crash site
- State-of-the-art meeting rooms
- Catering for you and your customers
- Area-wide W-Lan on the crash test site
- Advertising video production by external film team (http://www.luum.ms)
News
2nd Vehicle.Security.Barrier.Conference
Last week, the second Vehicle Security Barrier Conference (VSBC) took place on the CTS crash test site, organized by the BTU Cottbus. The conference was dedicated to improving security in public spaces, particularly in view of the increasing need for protection against vehicle attacks. The aim of the event, which attracted over 100 participants, was to introduce municipalities, event organizers and security experts to solutions and technologies - such as vehicle barriers - for securing public areas and events.
The conference was characterized by high-profile speakers. Mayor Markus Lewe opened the event, while Police President Alexandra Dorndorf gave an insight into the security strategy of the G7 summit. On behalf of the organizer, Christian Weicht gave a presentation on access protection concepts. Detlev Schürmann led the program of the other speakers.
Renowned exhibitors presented their latest access barriers, and as a special highlight, in addition to a crash test in a ditch, a high-security barrier from a manufacturer was also successfully tested live.
New test area according to the "TL-Leitbaken 97"
With the general circular "Road Construction No. 23/2022" of December 14, 2022 from the Federal Ministry for Digital Affairs and Transport, Department 07.3, CTS now meets all the necessary requirements to carry out this test. The department was also rated positively in the last DAkkS surveillance audit.
Other relevant standards such as EN 1317, MASH, ASTM F2656/F2656M, DIN SPEC 91414-1, ISO 22343-1 as well as the Technical Guideline - Mobile Vehicle Safety Barriers and EN 12767 can be found at:
Would you like to experience a vehicle bollard/ Roadblocker crash test live, exchange ideas with experts or view products from renowned manufacturers on site? Then secure your ticket now at:
New standards for guard rails: CTS successfully tests according to DIN CEN/TS 1317-7 and 1317-9 standards
CTS has actively participated in the creation of the standards DIN CEN/TS 1317-7:2024-04 and DIN CEN/TS 1317-9:2024-04.
The new standards describe the test procedure for initial and final structures or removable protective devices. The preliminary standards are intended to replace the current preliminary standard DIN V ENV 1317-4:202-04.
The first tests have already been successfully carried out according to the new standard on the CTS crash test facility.
The standards are available for purchase from DIN Media Verlag:
https://www.dinmedia.de/de/vornorm/din-cen-ts-1317-7/362877851
https://www.dinmedia.de/de/vornorm/din-cen-ts-1317-9/362884422
We look forward to testing your innovative protective devices!
